Making Asteroids with Kontra.js and Web Maker

A step-by-step tutorial on building a simplified Asteroids arcade game using the Kontra.js game library and Web Maker.

This is a guest post by Steven Lambert, creator of Kontra.js.

Making games for the first time can always be a daunting task. In this tutorial, we'll walk through creating a simplified Asteroids arcade game using Kontra.js and Web Maker.

Use a Library #

We'll leverage the Kontra.js game library, a lightweight library built for the JS13kGames game jam. Using a library abstracts away complexity like game loop management, allowing us to focus on gameplay mechanics.

This tutorial covers a simplified version featuring asteroids, a player ship, and bullets -- making it approachable for newcomers.

Setting up the Game With Web Maker #

Launch Web Maker app and enable Js13kGames Mode from settings for the appropriate gamedev environment.

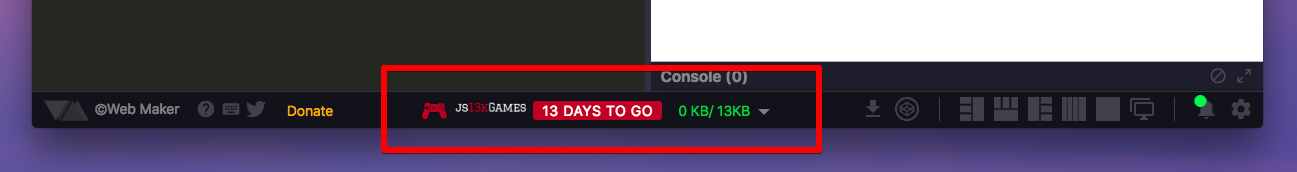

Js13kGames Mode setting in Web Maker

The setup process:

  1. Click New and select the Kontra Game Engine template
  2. Add the latest Kontra.js library via the Add Library button
  3. Update the HTML canvas to 600x600 pixels
  4. Add CSS styling for black background and white border

HTML:

<canvas width="600" height="600"></canvas>

CSS:

body {
	background: black;
}
canvas {
	border: 1px solid white;
}

The JavaScript initialization uses destructuring to capture canvas and context:

let { canvas, context } = kontra.init();

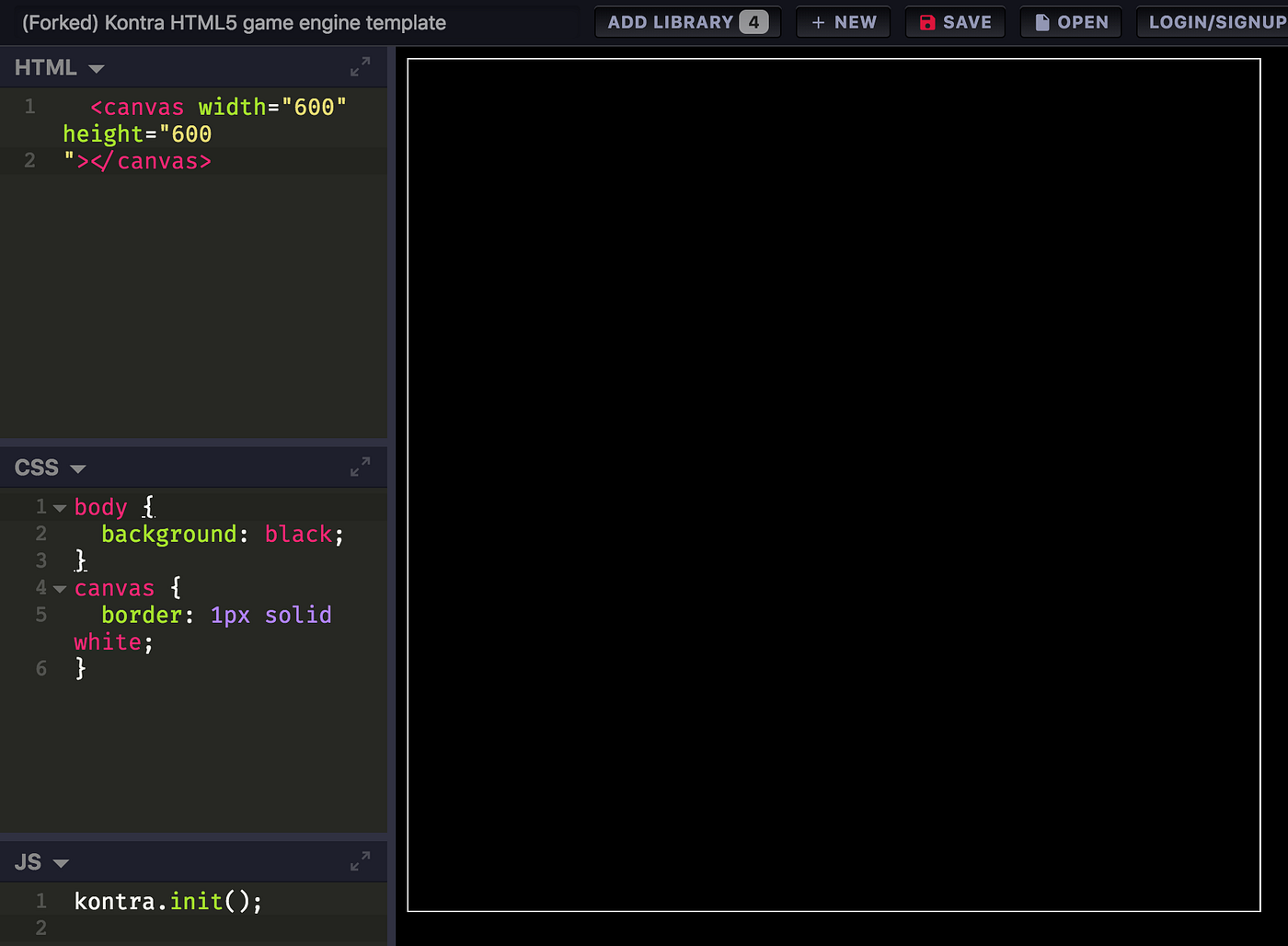

Web Maker app with initial code setup

Creating an Asteroid #

Sprites in Kontra are created using kontra.Sprite(), accepting position, velocity, and rendering logic. The asteroid sprite is drawn as a white circle:

let asteroid = kontra.Sprite({
	type: 'asteroid',
	x: 100,
	y: 100,
	dx: Math.random() * 4 - 2,
	dy: Math.random() * 4 - 2,
	radius: 30,
	render() {
		this.context.strokeStyle = 'white';
		this.context.beginPath();
		this.context.arc(0, 0, this.radius, 0, Math.PI * 2);
		this.context.stroke();
	}
});
asteroid.render();

Notice that we draw the circle using the coordinates {0, 0}. This is because Kontra will automatically move the origin of the canvas to the x and y position of the sprite.

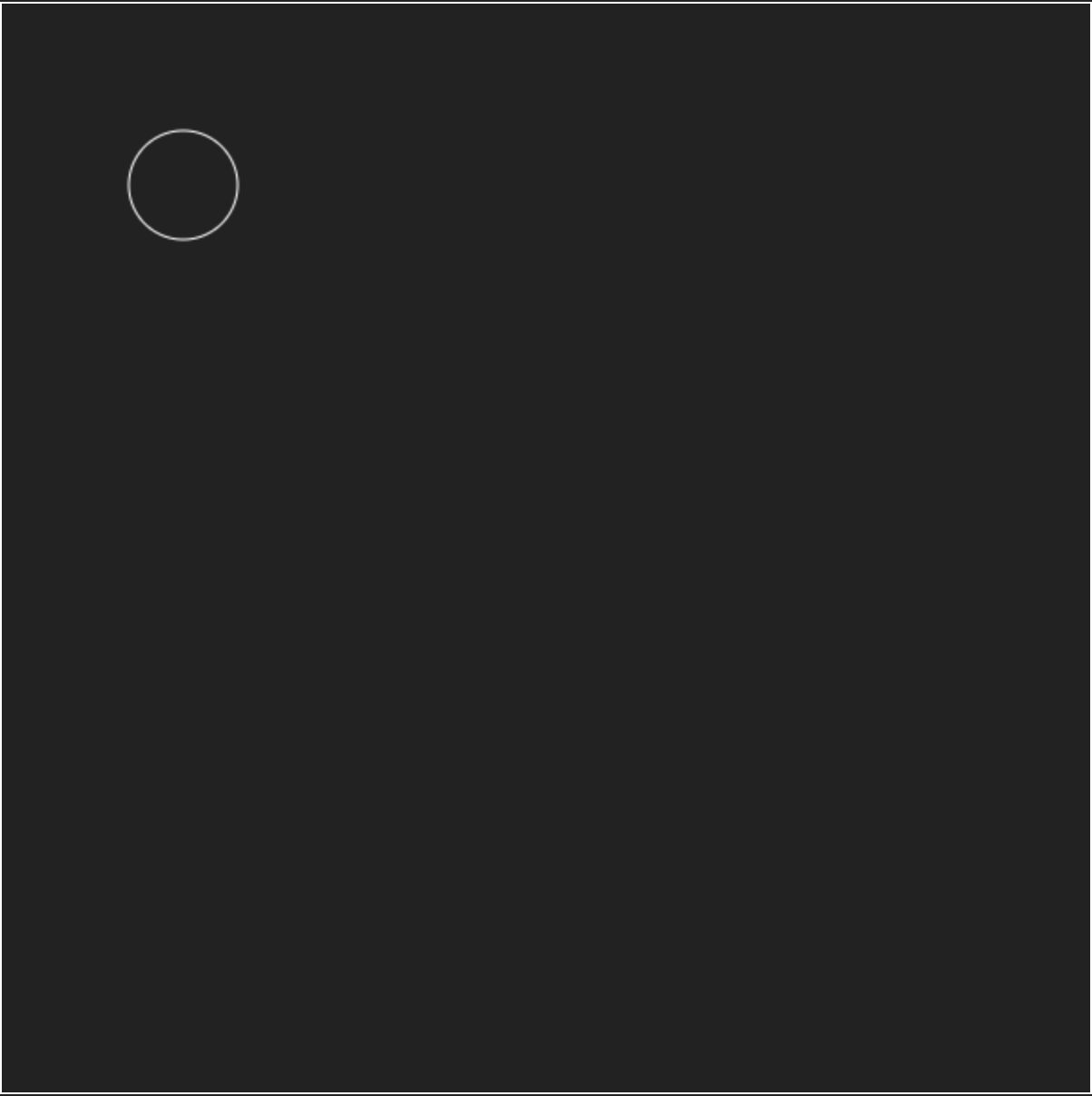

A lone asteroid on the canvas

Creating the Game Loop #

A game loop updates and renders sprites each frame. The kontra.GameLoop() accepts update() and render() functions, started with loop.start():

let loop = kontra.GameLoop({
	update() {
		asteroid.update();
	},
	render() {
		asteroid.render();
	}
});
loop.start();

Wrapping Around the Screen #

To prevent sprites from disappearing off-screen, the update function checks boundaries and repositions asteroids that exceed edges. Using the asteroid's radius ensures complete off-screen detection:

update() {
  asteroid.update();

  if (asteroid.x < -asteroid.radius) {
    asteroid.x = canvas.width + asteroid.radius;
  } else if (asteroid.x > canvas.width + asteroid.radius) {
    asteroid.x = 0 - asteroid.radius;
  }
  if (asteroid.y < -asteroid.radius) {
    asteroid.y = canvas.height + asteroid.radius;
  } else if (asteroid.y > canvas.height + asteroid.radius) {
    asteroid.y = -asteroid.radius;
  }
}

More Asteroids #

Rather than hardcoding individual asteroids, a factory function createAsteroid() generates multiple instances with random velocities ranging from -2 to 2:

let { canvas, context } = kontra.init();
let sprites = [];

function createAsteroid() {
	let asteroid = kontra.Sprite({
		type: 'asteroid',
		x: 100,
		y: 100,
		dx: Math.random() * 4 - 2,
		dy: Math.random() * 4 - 2,
		radius: 30,
		render() {
			this.context.strokeStyle = 'white';
			this.context.beginPath();
			this.context.arc(0, 0, this.radius, 0, Math.PI * 2);
			this.context.stroke();
		}
	});
	sprites.push(asteroid);
}

for (let i = 0; i < 4; i++) {
	createAsteroid();
}

let loop = kontra.GameLoop({
	update() {
		sprites.map(sprite => {
			sprite.update();
			if (sprite.x < -sprite.radius) {
				sprite.x = canvas.width + sprite.radius;
			} else if (sprite.x > canvas.width + sprite.radius) {
				sprite.x = 0 - sprite.radius;
			}
			if (sprite.y < -sprite.radius) {
				sprite.y = canvas.height + sprite.radius;
			} else if (sprite.y > canvas.height + sprite.radius) {
				sprite.y = -sprite.radius;
			}
		});
	},
	render() {
		sprites.map(sprite => sprite.render());
	}
});
loop.start();

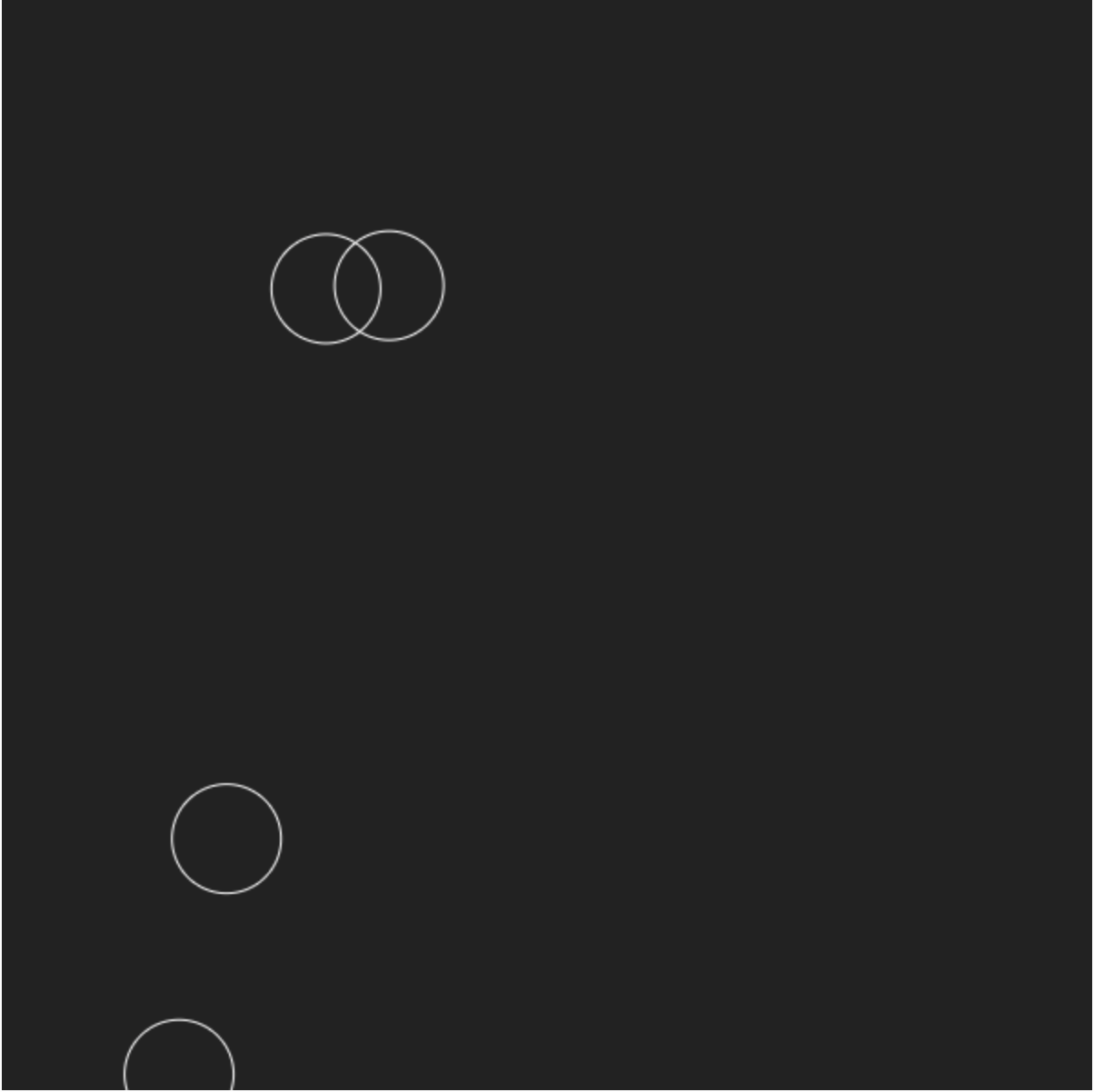

Four asteroids moving around the screen

The Player Ship #

The ship is drawn as a white triangle positioned at the canvas center:

let ship = kontra.Sprite({
	x: 300,
	y: 300,
	radius: 6,
	render() {
		this.context.strokeStyle = 'white';
		this.context.beginPath();
		this.context.moveTo(-3, -5);
		this.context.lineTo(12, 0);
		this.context.lineTo(-3, 5);
		this.context.closePath();
		this.context.stroke();
	}
});
sprites.push(ship);

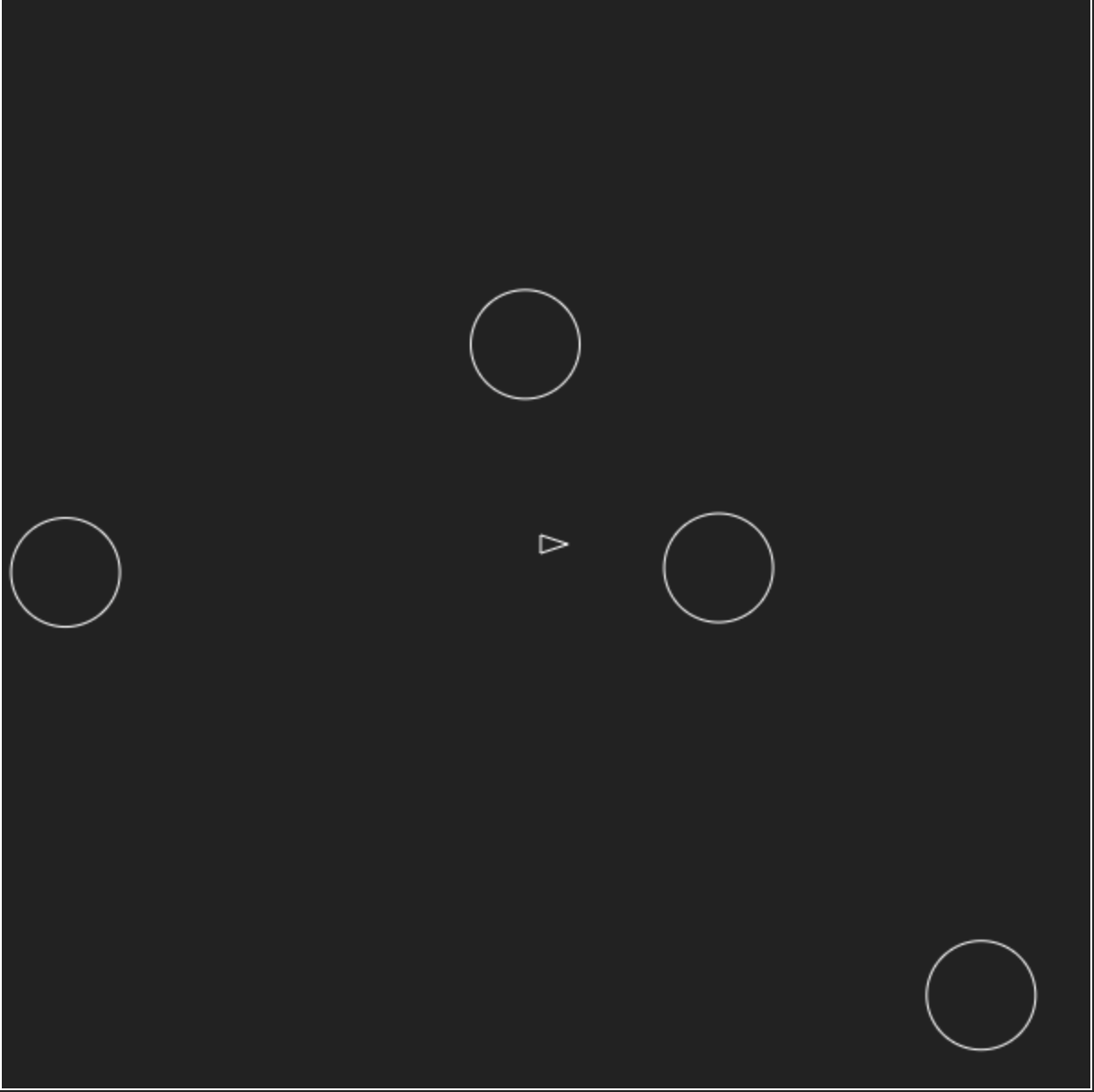

Player ship surrounded by asteroids

Rotating the Player Ship #

The ship rotates using left/right arrow keys. First, initialize the keyboard with kontra.initKeys(), then check key states in the ship's update function. Kontra's rotation property handles sprite rotation in radians:

kontra.initKeys();

let ship = kontra.Sprite({
	x: 300,
	y: 300,
	radius: 6,
	render() {
		this.context.strokeStyle = 'white';
		this.context.beginPath();
		this.context.moveTo(-3, -5);
		this.context.lineTo(12, 0);
		this.context.lineTo(-3, 5);
		this.context.closePath();
		this.context.stroke();
	},
	update() {
		if (kontra.keyPressed('left')) {
			this.rotation += kontra.degToRad(-4);
		} else if (kontra.keyPressed('right')) {
			this.rotation += kontra.degToRad(4);
		}
	}
});

Note: Zero degrees is not up, it's to the right. This is because zero radians starts at the right.

Ship Thrust #

Pressing the up arrow moves the ship forward in its facing direction using trigonometry:

update() {
  if (kontra.keyPressed('left')) {
    this.rotation += kontra.degToRad(-4);
  } else if (kontra.keyPressed('right')) {
    this.rotation += kontra.degToRad(4);
  }

  const cos = Math.cos(this.rotation);
  const sin = Math.sin(this.rotation);

  if (kontra.keyPressed('up')) {
    this.ddx = cos * 0.05;
    this.ddy = sin * 0.05;
  }
  this.advance();
}

Ship Maximum Speed #

To prevent uncontrolled acceleration, the ship's maximum velocity is capped by checking the velocity vector's magnitude:

update() {
  if (kontra.keyPressed('left')) {
    this.rotation += kontra.degToRad(-4);
  } else if (kontra.keyPressed('right')) {
    this.rotation += kontra.degToRad(4);
  }

  const cos = Math.cos(this.rotation);
  const sin = Math.sin(this.rotation);

  if (kontra.keyPressed('up')) {
    this.ddx = cos * 0.05;
    this.ddy = sin * 0.05;
  } else {
    this.ddx = this.ddy = 0;
  }
  this.advance();

  if (this.velocity.length() > 5) {
    this.dx *= 0.95;
    this.dy *= 0.95;
  }
}

Firing Bullets #

Spacebar fires bullets with a firing rate limit. A dt variable tracks elapsed time; bullets only spawn after 0.25 seconds have passed. Bullets have a limited lifespan via the ttl property:

let ship = kontra.Sprite({
	x: 300,
	y: 300,
	radius: 6,
	dt: 0,
	render() {
		this.context.strokeStyle = 'white';
		this.context.beginPath();
		this.context.moveTo(-3, -5);
		this.context.lineTo(12, 0);
		this.context.lineTo(-3, 5);
		this.context.closePath();
		this.context.stroke();
	},
	update() {
		if (kontra.keyPressed('left')) {
			this.rotation += kontra.degToRad(-4);
		} else if (kontra.keyPressed('right')) {
			this.rotation += kontra.degToRad(4);
		}

		const cos = Math.cos(this.rotation);
		const sin = Math.sin(this.rotation);

		if (kontra.keyPressed('up')) {
			this.ddx = cos * 0.05;
			this.ddy = sin * 0.05;
		} else {
			this.ddx = this.ddy = 0;
		}
		this.advance();

		if (this.velocity.length() > 5) {
			this.dx *= 0.95;
			this.dy *= 0.95;
		}

		this.dt += 1 / 60;
		if (kontra.keyPressed('space') && this.dt > 0.25) {
			this.dt = 0;

			let bullet = kontra.Sprite({
				color: 'white',
				x: this.x + cos * 12,
				y: this.y + sin * 12,
				dx: this.dx + cos * 5,
				dy: this.dy + sin * 5,
				ttl: 50,
				radius: 2,
				width: 2,
				height: 2
			});
			sprites.push(bullet);
		}
	}
});

sprites.push(ship);

Dead bullets are filtered from the sprites array:

sprites = sprites.filter(sprite => sprite.isAlive());

Ship firing bullets at asteroids

Collision Detection #

Circle-to-circle collision checks occur in the game loop. Non-asteroid sprites collide with asteroids; asteroids don't collide with each other:

for (let i = 0; i < sprites.length; i++) {
	if (sprites[i].type === 'asteroid') {
		for (let j = 0; j < sprites.length; j++) {
			if (sprites[j].type !== 'asteroid') {
				let asteroid = sprites[i];
				let sprite = sprites[j];

				let dx = asteroid.x - sprite.x;
				let dy = asteroid.y - sprite.y;

				if (Math.hypot(dx, dy) < asteroid.radius + sprite.radius) {
					asteroid.ttl = 0;
					sprite.ttl = 0;
					break;
				}
			}
		}
	}
}

sprites = sprites.filter(sprite => sprite.isAlive());

Splitting the Asteroid #

The createAsteroid() function accepts position and radius parameters, enabling creation of smaller asteroids when larger ones are destroyed. Asteroids only split if their radius exceeds 10 pixels:

function createAsteroid(x, y, radius) {
	let asteroid = kontra.Sprite({
		type: 'asteroid',
		x,
		y,
		dx: Math.random() * 4 - 2,
		dy: Math.random() * 4 - 2,
		radius,
		render() {
			this.context.strokeStyle = 'white';
			this.context.beginPath();
			this.context.arc(0, 0, this.radius, 0, Math.PI * 2);
			this.context.stroke();
		}
	});
	sprites.push(asteroid);
}

for (let i = 0; i < 4; i++) {
	createAsteroid(100, 100, 30);
}

In the collision detection, splitting occurs when larger asteroids are hit:

if (Math.hypot(dx, dy) < asteroid.radius + sprite.radius) {
  asteroid.ttl = 0;
  sprite.ttl = 0;

  if (asteroid.radius > 10) {
    for (let i = 0; i < 3; i++) {
      createAsteroid(asteroid.x, asteroid.y, asteroid.radius / 2.5);
    }
  }
  break;
}

Game Over #

Congratulations, you've just made your first game! From here you could add player lives, wandering UFOs, hyperspace, scoring, or a reset button.

If you participate in the Js13kGames jam, share your creations on Twitter via @StevenKLambert, @js13kgames, and @webmakerApp.
